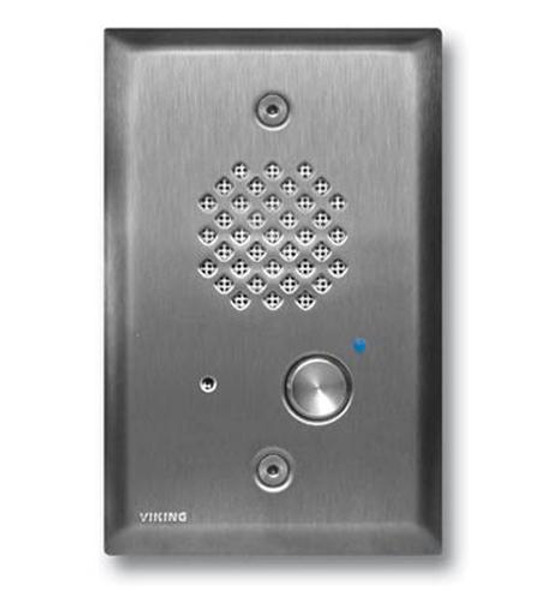

Product Overview
- Compact size: Front panel is the size of a typical single gang midsize wall plate
- Mounting: Flush mounts in a single gang electrical box (2.25? deep x 2.00? wide x 2.84? tall minimum) or surface mounts in a Viking model VE-3x5 (not included see DOD# 424)
- Available in 5 standard faceplate finishes: Brushed Stainless Steel Oil Rubbed Bronze Polished Brass Satin Black and Satin White
- PNL-40 faceplates: Replacement faceplates with matching screws available in all five standard finishes
- Vandal Resistant Features: 16 gauge polished brass or 18 gauge 304 stainless steel faceplate 316 stainless steel push button carbon fiber reinforced plastic speaker screen scratch resistant powder coating hex drive mounting screws
- Weather Resistant Features: Mylar speaker faceplate gasket mic and speaker gasket internally sealed (IP67) push button switch selfdraining mic mount and UV stable weather resistant powder coating (excluding E-40-SS 304 Stainless Steel faceplate)
- Telephone line powered
- Microphone and speaker volume controls
- Programmable Intelligent call progress detection for automatic hang-up on CPC silence busy signal or time out
- Selectable auto answer feature for monitoring
- Programmable VOX (mic/speaker) switching speed
- Blue LED helps locate push button indicate ringing and off hook
