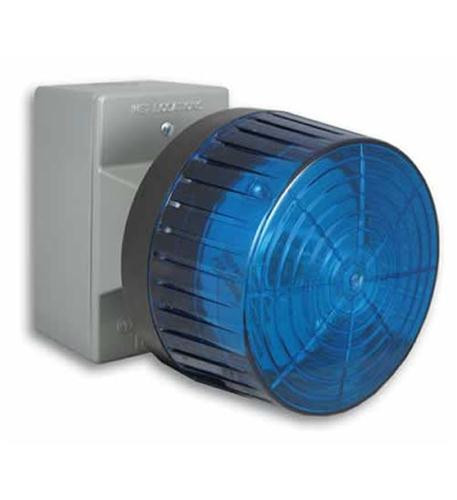

Product Overview
- BLK-4-EWP?s control module and strobe light come with Enhanced Weather Protection (EWP) EWP products are designed to meet IP66 Ingress Protection Rating see DOD# 859
- Durable polycarbonate lens
- High output long life LED technology
- Four programmable flash patterns: - Single Flash - Double Flash - Quad Flash - Flicker Flash
- 6 programmable beacon and strobe brightness settings
- Immune to shock and vibration
- Flush mount or surface mount with weatherproof single gang box (included)
- 3/4? knockouts for connecting conduit etc.
- Strobe and control module may be installed separately
- Can be configured to signal: ringing off-hook a combination of both ringing and off-hook (line in-use) or triggered from a contact closure
- One set of (NO) normally open and (NC) normally closed relay contacts provided
- Selectable ring cadence mode (strobe light will remain flashing between rings)
- Switched 12V DC output (follows relay activation for powering strobe lights cameras etc.)
- On/off switches for ring detection and off-hook/loop detection
- Disable input ideal for use with two-button emergency phones like Viking?s E-1600-20A (DOD# 215) will not activate strobe light on ?Info? calls
- Applications:
- Ringing Phone or TTY indication for the hearing impaired
- Ringing phone indication in loud warehouses and factories
- Emergency illumination for emergency phones in elevators campuses hallways parking ramps etc.
- Alarm indication for security systems or alarm panels with phone dialers
